Horizontal Band Saw – Model H-230A

HYDMECH

Inquiry Request

OPTIMIZE YOUR HORIZONTAL CUTS

The H-230A is the smallest of HYDMECH's automatic horizontal band saws. Its divided front vice for clamping the material helps reduce burrs on cut parts. The machine's controller can be easily programmed, storing up to 10 different cutting jobs, including 5 waiting, and offering several different cutting modes.

Equipped with shuttle feed, the entire shuttle vise is capable of indexing material at high speed, up to 19" in a single stroke. Driven by a stepper motor controlled by a screw ball, the H-230A allows fast and precise cuts.

With a capacity of 9"H x 9"W, a 3 HP motor and a 1" blade, the H-230A is a reliable choice for your horizontal cutting applications. Discover this compact and efficient machine today for meet your horizontal cutting needs.

chevron-left
chevron-right

OPTIMIZE YOUR HORIZONTAL CUTS

The H-230A is the smallest of HYDMECH's automatic horizontal band saws. Its divided front vice for clamping the material helps reduce burrs on cut parts. The machine's controller can be easily programmed, storing up to 10 different cutting jobs, including 5 waiting, and offering several different cutting modes.

Equipped with shuttle feed, the entire shuttle vise is capable of indexing material at high speed, up to 19" in a single stroke. Driven by a stepper motor controlled by a screw ball, the H-230A allows fast and precise cuts.

With a capacity of 9"H x 9"W, a 3 HP motor and a 1" blade, the H-230A is a reliable choice for your horizontal cutting applications. Discover this compact and efficient machine today for meet your horizontal cutting needs.

Main features

  • Heavy-duty cast iron saw head
  • The split front vise allows for a short drop length of 2.5".
  • The cast iron shuttle is equipped with an automatic multi-indexing system up to 19" in a single stroke with automatic kerf compensation. Driven by ball screw and stepper motor.
  • Hydraulics on demand
  • Steel guide arm. The pinion side guide arm is mechanically connected to the movable jaw of the front vice to ensure correct spacing of the guide arms at all times.
  • Variable vise pressure
  • 3 HP VARIABLE FREQUENCY DRIVE (VFD). True direct blade drive - no belts/pulleys.
  • Full Capacity, Full Stroke Hydraulic Vices
  • Positive hydraulic feed downwards
  • The blade chamber separates the material from the cut piece
  • Cast iron band wheels
  • PLC, touch screen control, programmable up to 20 tasks with 5 in queue
  • Replaceable blade brush
  • Sturdy steel base
  • Automatic chip evacuation screw
  • Blade break switch
  • Easy access electrical and hydraulic panel
  • Designed for safety with "saw in a box" style.
  • Out of stock switch
  • Mechanical ribbon tension with digital display
  • Replaceable carbide guide inserts
  • Security door locks
  • Coolant with garden hose
  • Vertical rollers
  • Laser light and work light
Technical sheet

Possible configurations

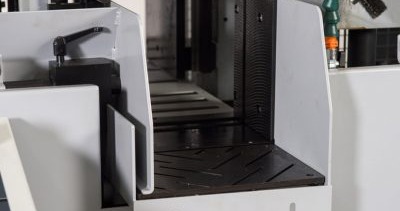

Split Jaw Vise

The H-230A’s split front vise design achieves a short drop length of 2.5″, reducing material loss.

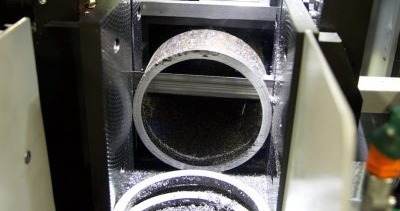

Double Down Electronic Power Supply

The DDF electronic power supply is controlled by the amperage of the chip charge. Head feed automatically adjusts based on relative chip load. This highly responsive closed-loop system provides better cutting and longer tool life.

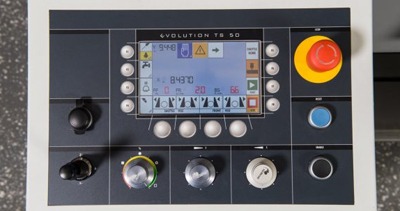

Touch screen control

Windows touch screen control is very intuitive and easy to program. Most of the programming is done on a single page. Most of the machine's function keys are outside the touchscreen area, so the operator should only use the touchscreen while programming a job.

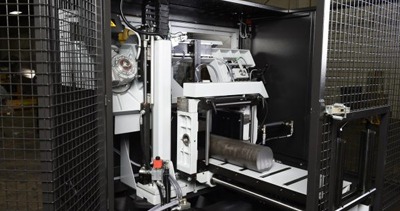

Automatic multi-indexing

Its shuttle vise is capable of indexing material at high speed up to 19" in a single stroke. Driven by a stepper motor controlled by a ball screw, the H-230A provides fast and precise cuts.
