Main features
- Software control:
- New Bend Classic function with touchscreen on the control cabinet
- Radius function

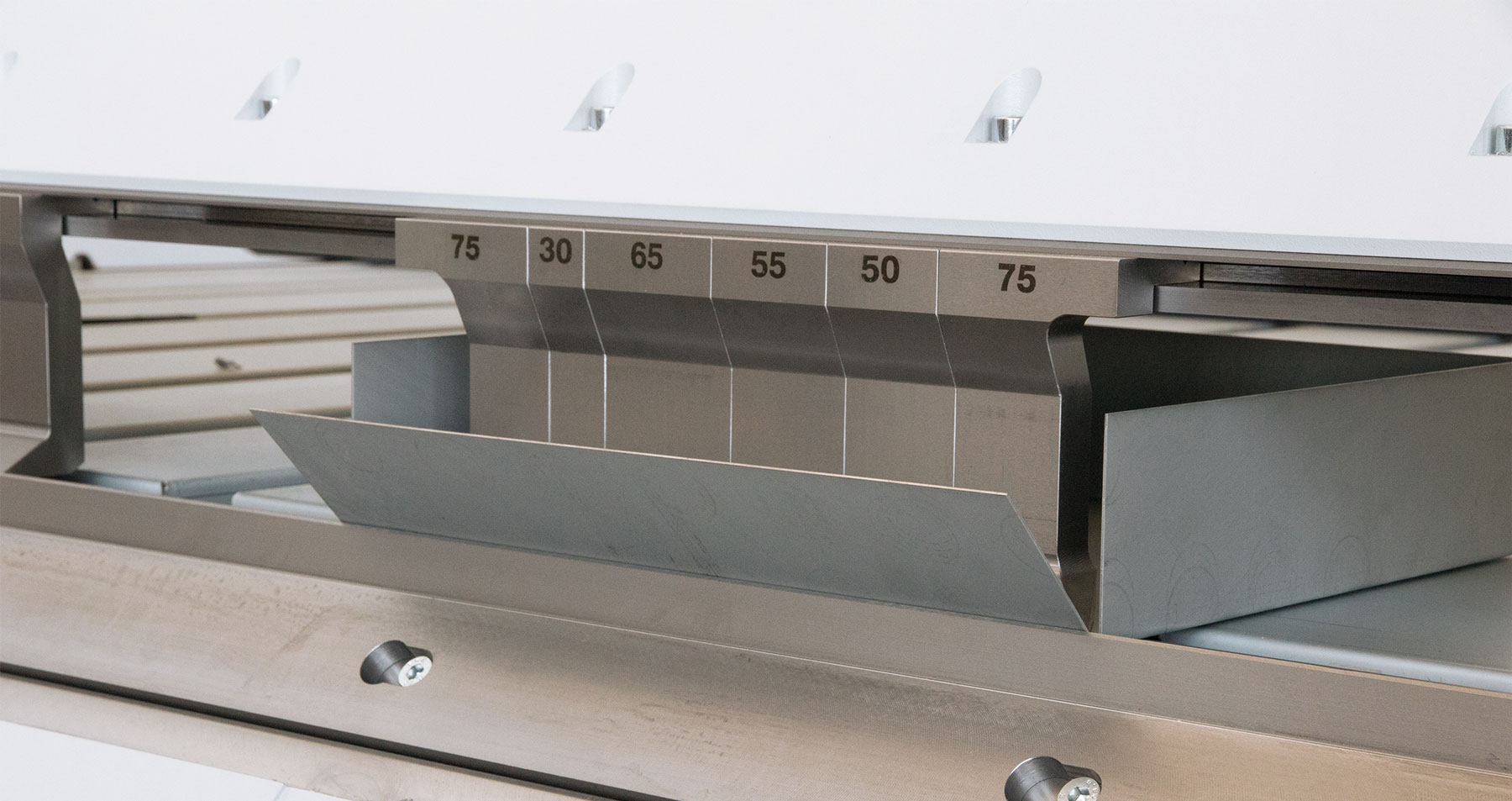

- Clamping beam
- 45° clamping beam with 65mm clearance at the rear
- Drive motor: 0.75 kW central motor
- Travel of the clamping beam: 150 mm Adjustment of the clamping pressure via a crank (without tools)

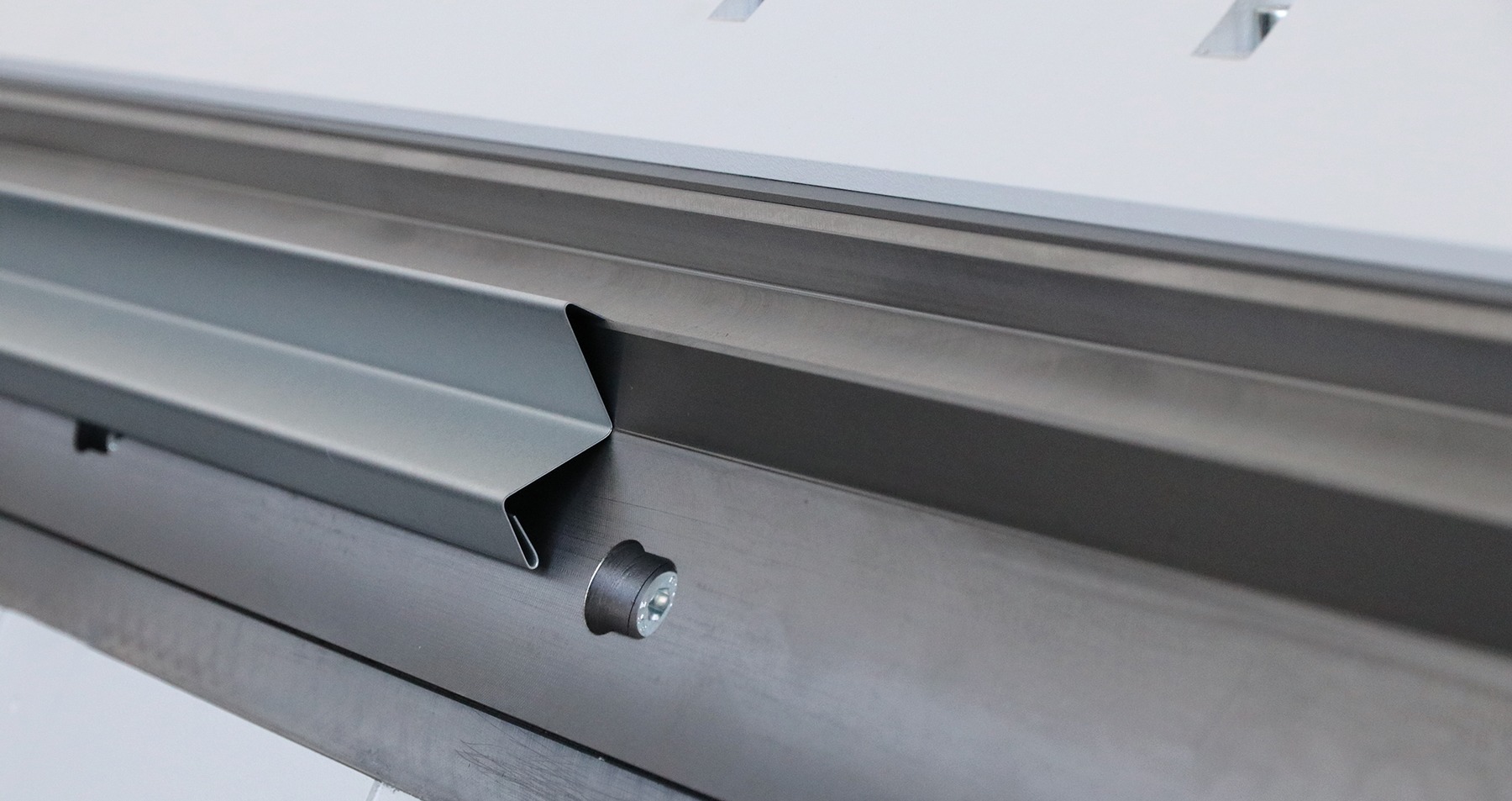

- Clamping beam tools: Sheet metal blade or optional, 20° pointed nose blade, approximately 700 N/mm², directly screwed onto the clamping beam
- Folding beam
- Drive motor: 1.5 kW (converter control)

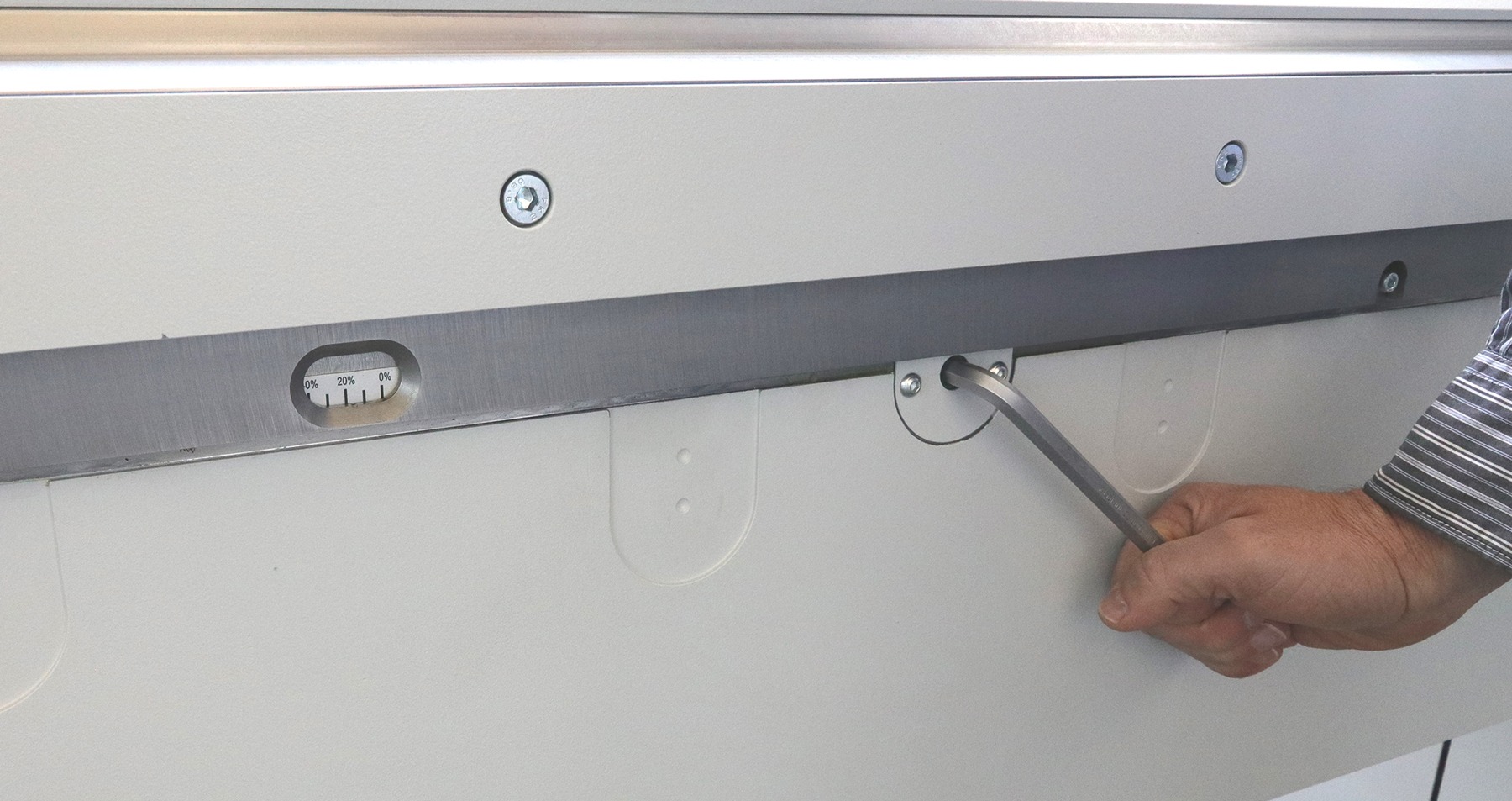

- Manual adjustment: 30 mm
- 10 mm and 25 mm folding blades (from MAKU 3200: 15 mm and 25 mm); 700 N/mm²
- Lower beam
- Lower 45° beam with 54mm clearance at the rear
- Lower beam blade, one-piece, lowered by 8 mm, approximately 700 N/mm², from 30 mm: lowered by 8 mm, depending on the gauge chosen
- without finger grooves
- with 6 mm or optionally 10 mm finger grooves
- Others
- Pedal
- Anchor plates including dowels
