Mechanical shear – PDC series

SCHRÖDER

Inquiry Request

ROBUST SHEAR WITH FAST OUTLINE

The PDC motorized shear represents a robust evolution of the MHSU line. Its stronger, more rigid table and frame design, combined with the dual-motor “Duo-Cut” drive system, delivers significantly improved cutting capabilities.

With the PDC shear, performance and robustness come together to offer you an unrivaled cutting solution.

chevron-left
chevron-right

ROBUST SHEAR WITH FAST OUTLINE

The PDC motorized shear represents a robust evolution of the MHSU line. Its stronger, more rigid table and frame design, combined with the dual-motor “Duo-Cut” drive system, delivers significantly improved cutting capabilities.

With the PDC shear, performance and robustness come together to offer you an unrivaled cutting solution.

Main features

  • 750 mm manual backgauge, adjustable from the front, with digital display
  • Retainer with hard rubber rail to protect polished sheets
  • Manual blade gap adjustment, two sides
  • Extended angle gauge, straight, with T-slot and 1000 mm scale
  • All-steel, double-edged blade
  • 2 sheet metal supports with T-slot and 1000 mm graduation
    (3 support arms with a working length of 4000 mm)
  • Table with interchangeable stainless steel plates with recessed handles
  • Selector for single or continuous stroke
  • From 2000 mm: with bilateral drive
  • Foot control
  • Anchor plates with dowels
  • Mandatory safety kit in accordance with the CE standard:
  • Rear protection with 3-beam light barrier, including side protection grille
Technical sheet

Available models

  • 1500×4.5
  • 2000×4.0
  • 2500×3.5
  • 3200×3.0
  • 4000×2.5
Get info

Possible configurations

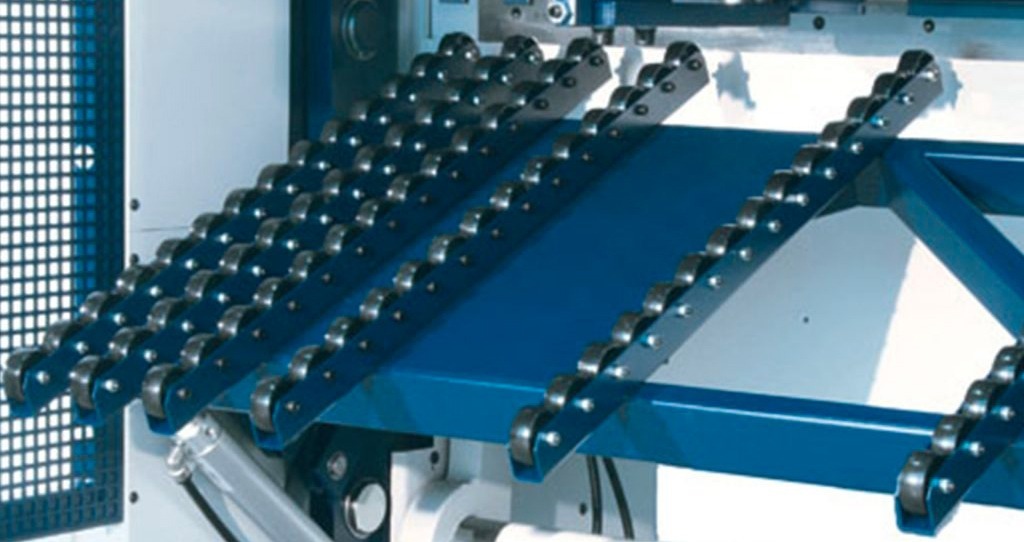

Flexibility and precision for your factory

The pneumatic sheet metal support can be configured to return material to the front or rear of the machine, depending on your factory layout, providing location flexibility and saving time. It guarantees high precision regardless of the material thickness and the depth of the backgauge. Available as an option.

Simple adjustments for thick materials

Simple adjustments to the spacing between the knives is a crucial asset in being able to cut thicker material without damaging the knives.
