Hydraulic press brake – PBH Series

Yawei

Inquiry Request

A HASSLE-FREE INVESTMENT

Explore the PBH range of press brakes, which offer high speed and agility. They incorporate a differential pressure control system for low oil temperature operation and reduced overflow, ensuring exceptional stability and reliability. Enjoy a wide selection of tools and fixtures, as well as high-responsive hydraulic control technology that provides benefits such as increased speed, improved efficiency and unmatched precision. With a long stroke, a wide opening, and a wide range of applications, the press brakes in the PBH range adapt to all your needs. In addition, they are designed to facilitate folding automation. Discover the future of productivity and performance with PBH solutions.

chevron-left
chevron-right

A HASSLE-FREE INVESTMENT

Explore the PBH range of press brakes, which offer high speed and agility. They incorporate a differential pressure control system for low oil temperature operation and reduced overflow, ensuring exceptional stability and reliability. Enjoy a wide selection of tools and fixtures, as well as high-responsive hydraulic control technology that provides benefits such as increased speed, improved efficiency and unmatched precision. With a long stroke, a wide opening, and a wide range of applications, the press brakes in the PBH range adapt to all your needs. In addition, they are designed to facilitate folding automation. Discover the future of productivity and performance with PBH solutions.

Main features

  • Ram and backgauge speeds among the highest in their class
  • Simple and quick programming of your parts even on the machine
  • One of the most efficient security systems on the market
  • Positioning of the rear stop using ball screws with an accuracy of 0.0004″
  • Parallelism of the ram ensured by two very high precision GIVI rules (also 0.0004″)
  • Hydraulic CNC (“crooning”) design 100% waterproof and maintenance-free, offering multiple advantages
  • Structural design designed in Switzerland and proven in Europe for over 35 years
  • Worldwide recognized manufacturer
  • Proven quality hydraulic, electrical and mechanical components
  • Exceptional after-sales service provided by our team of certified technicians
Technical sheet

Available models

  • PBH-80/2550
  • PBH-110/3100
  • PBH-110/4100
  • PBH-160/3100
  • PBH-160/4100
  • PBH-220/3100
  • PBH-220/4100
  • PBH-250/3100
  • PBH-250/4100
  • PBH-300/3100
  • PBH-300/4100
Get info

Possible configurations

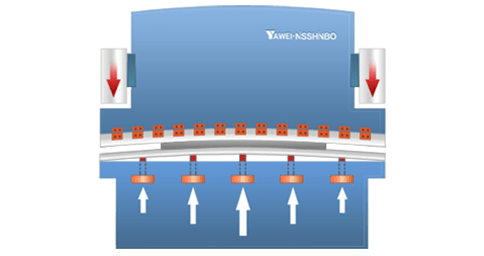

Hydraulic bench compensation

Standard at Yawei, optional with certain manufacturers, this type of compensation offers a multitude of advantages in terms of precision and maintenance due to its design. Yawei now perfectly masters the manufacture of this type of crowning, which is perfectly waterproof and requires no special maintenance (5-year guarantee on this system). The main advantages are in terms of precision and maintenance. Now available in “Dynamic” version.

Cylinders & pistons made from forged steel

Forged steel dissipates heat better and is more resistant to wear. It is the most expensive of the steels usable for the manufacture of cylinders, however the long-term advantages are very significant: lower operating temperature, ensuring a greater lifespan for all hydraulic components as well as a increased precision when folding. In addition, the lifespan of the cylinders and the long-term maintenance cost are significantly improved. The pistons are also forged, ground and chrome plated.

8-point ram guidance

This type of design ensures minimal transverse deflection, greater bending precision, significantly increased slide life and additional protection for the cylinder rods.

Price Request

Need Repairs?

In case of malfunction, our team of certified technicians promptly intervenes to ensure the continuity of your production. Equipped with a comprehensive workshop dedicated to machining and welding, we strive to minimize interruptions by conducting precise diagnostics and repairs, whether within our facilities or at your site.

Repairs

Press brake accessories and tools

To enhance the operation of your machines or replace a missing part, our subsidiary, Fabtooling, assists you in sourcing and providing specific parts to enhance your production line. Rely on our expertise to find the components necessary for optimizing your equipment.
