Semi-automatic band saw – Model 260 BSA

Carif

Inquiry Request

THE POWER OF PRECISION IN CUTTING

Discover the CARIF 260BSA semi-automatic band saw, a fully hydraulic semi-automatic cutting machine. Its robust design, its frame structure with a smooth and shiny epoxy finish, as well as its special hardened aluminum alloy hoop guarantee exceptional durability. Equipped with a patented hydraulic pump for precise adjustment of feed and cutting pressure, this saw offers reliable performance. Its 1.1/1.4 KW motor with a speed range of 33-66 m/1' ensures precise cuts, even at inclined angles up to -45°/+60°. The mobile and ergonomic electric control, the large workpiece support surfaces and the integrated cooling system make this saw a versatile tool for efficient and precise cutting operations.

The CARIF 260BSA semi-automatic bandsaw is designed to enhance your cutting experience. It comes with a measuring device L=500 mm for elevation adjustment, a large chip tray for easy cleaning, and a high quality Bimetal M42 blade measuring 2450x27x0.9 mm. This machine is ready to use, with careful packaging, pallet, service keys, instruction manual and spare parts. Opt for the performance and durability of the CARIF 260BSA for your cutting operations.

chevron-left
chevron-right

THE POWER OF PRECISION IN CUTTING

Discover the CARIF 260BSA semi-automatic band saw, a fully hydraulic semi-automatic cutting machine. Its robust design, its frame structure with a smooth and shiny epoxy finish, as well as its special hardened aluminum alloy hoop guarantee exceptional durability. Equipped with a patented hydraulic pump for precise adjustment of feed and cutting pressure, this saw offers reliable performance. Its 1.1/1.4 KW motor with a speed range of 33-66 m/1' ensures precise cuts, even at inclined angles up to -45°/+60°. The mobile and ergonomic electric control, the large workpiece support surfaces and the integrated cooling system make this saw a versatile tool for efficient and precise cutting operations.

The CARIF 260BSA semi-automatic bandsaw is designed to enhance your cutting experience. It comes with a measuring device L=500 mm for elevation adjustment, a large chip tray for easy cleaning, and a high quality Bimetal M42 blade measuring 2450x27x0.9 mm. This machine is ready to use, with careful packaging, pallet, service keys, instruction manual and spare parts. Opt for the performance and durability of the CARIF 260BSA for your cutting operations.

Main features

  • Robust frame structure, epoxy paint with smooth, glossy finish.
  • Special hardened aluminum alloy hoop.
  • Patented hydraulic device for adjusting feed and cutting pressure.
  • 1.1/1.4 KW (1.5/1.8HP) motor; 600V; 33-66 m/min (108-216 ft/min)
  • Inclined cuts up to -45°/+60°; rotation of the arch on conical roller bearings and independent of the support plane.
  • Mobile and ergonomic electric control panel
  • Large support surfaces for a practical work surface
  • Coolant tank inside the frame, capacity 50 l with 3ph electric pump.
  • Measuring device (L=500 mm) with adjustable elevation.
  • Large shavings tray for easy cleaning
  • Bimetal blade M42 mm 2450x27x0.9, packaging + pallet, service keys, instruction manual and spare parts
Technical sheet

Possible configurations

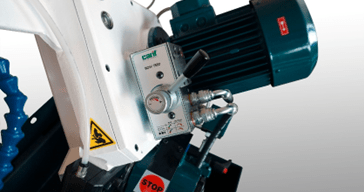

Patented Hydraulic System

The Patented Hydraulic System ensures regular descent of the blade with constant self-regulation adapted to each type of material, section and thickness. Thanks to this self-regulation of the blade tension depending on the hardness and section of the material, the cuts are always straight. In addition, this system extends the life of the blade by slowing down the descent of the arc without excessively stressing the blade, even when it is worn.

Angular Cuts up to -45º / +60º

The arch pivots on tapered roller bearings, independently of the support plane, thus providing maximum flexibility for precise cuts at various angles.
