Semi-automatic band saw – Model 320 BSA VAR-E

Carif

Inquiry Request

YOUR ALLY FOR PRECISE AND EASY CUTS

Discover the CARIF 320 BSA VAR-E 12'' semi-automatic bandsaw, a medium-sized semi-automatic chainsaw combining robustness and ease of use. With its powerful 2.2 kW drive movement and integrated electronic control for cutting height adjustment, this machine offers exceptional precision.

Its robust frame structure, its epoxy paint with a smooth and shiny finish, and its hardened aluminum alloy hoop guarantee foolproof durability. The CARIF 320 BSA VAR-E allows inclined cuts up to -45°/+60° thanks to the rotation of the arch on conical roller bearings, offering great flexibility of use. Its large parts support shelves provide a practical work surface, and the integrated coolant tank with a capacity of 50 liters ensures optimal operation. Comes with a 3025x27x0.9mm Bimetal M42 blade, service keys, instruction manual and spare parts, this machine is designed to meet your cutting needs while providing great convenience. The CARIF 320 BSA VAR-E is also suitable for use with output rollers, as its cutting height can be adjusted easily from the front panel. Enjoy quality cutting performance with this premium semi-automatic chainsaw.

chevron-left
chevron-right

YOUR ALLY FOR PRECISE AND EASY CUTS

Discover the CARIF 320 BSA VAR-E 12'' semi-automatic bandsaw, a medium-sized semi-automatic chainsaw combining robustness and ease of use. With its powerful 2.2 kW drive movement and integrated electronic control for cutting height adjustment, this machine offers exceptional precision.

Its robust frame structure, its epoxy paint with a smooth and shiny finish, and its hardened aluminum alloy hoop guarantee foolproof durability. The CARIF 320 BSA VAR-E allows inclined cuts up to -45°/+60° thanks to the rotation of the arch on conical roller bearings, offering great flexibility of use. Its large parts support shelves provide a practical work surface, and the integrated coolant tank with a capacity of 50 liters ensures optimal operation. Comes with a 3025x27x0.9mm Bimetal M42 blade, service keys, instruction manual and spare parts, this machine is designed to meet your cutting needs while providing great convenience. The CARIF 320 BSA VAR-E is also suitable for use with output rollers, as its cutting height can be adjusted easily from the front panel. Enjoy quality cutting performance with this premium semi-automatic chainsaw.

Main features

  • Robust frame structure, epoxy paint with smooth and shiny finish
  • Special hardened aluminum alloy hoop
  • Patented hydraulic device for adjusting
    feed and cutting pressure
  • Electric dimmer Kw2.2; 400V; 15÷100m/1'
  • Mobile and ergonomic electric control with front display, for easy memorization of the cutting height, adjustment of the cutting speed, parts counter
  • Inclined cuts up to -45°/+60°; rotation of the arch on conical roller bearings and independent of the support shelf parts
  • Large support shelves for a practical work surface
  • Coolant tank inside the frame, capacity 50 l with 3ph electric pump.
  • Measuring device L=500 mm with adjustable elevation
  • Large shavings tray for easy cleaning
  • Bimetal blade M42 mm 3025x27x0.9, packing box + pallet, service keys, instruction manual and spare parts
Technical sheet

Possible configurations

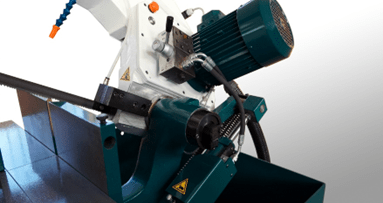

Patented Hydraulic System

The Patented Hydraulic System ensures a regular descent of the blade, self-regulating according to the hardness and section of the material to guarantee an always straight cut. This self-regulation of blade tension also helps extend blade life by slowing the arc's descent, without putting excessive pressure on the blade even when worn.

Removable Console with Integrated Panel

This console allows you to control blade speed, cutting height, and also includes a parts counter for precise and efficient production management.

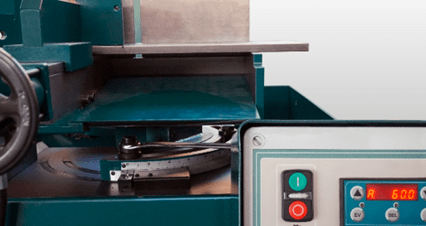

Angular Cuts up to -45º / +60º

The arch can pivot in both directions on tapered roller bearings, independently of the support plane, providing great flexibility for precise cuts at various angles. The digital angle display is available as an option for increased precision.
